Flow Totalizer

Electromed’s range of Flow Totalizers offers precise real-time monitoring of flow rate and cumulative volume for industrial utilities, chemical plants, and sugar mills. Designed for 24×7 operation, these instruments support 4–20 mA inputs, hourly data logging, and communication options like RS485 Modbus and 4–20 mA retransmission.

We can custom build the flow monitor to include new design / features as required by the customer.

Flow Totalizer Models

FW50T Flow Totalizer

Input: 4-20 mA
Flow Rate Display: 0.5 Inch
Current Hour Total: 0.5 Inch
Previous Hour Total: 0.5 Inch
External Season Total: 0.5 Inch
Time: 0.5 Inch

FW30T Flow Totalizer

Input: 4-20 mA
Flow Rate Display: 0.5 Inch
Season Total: 0.5 Inch

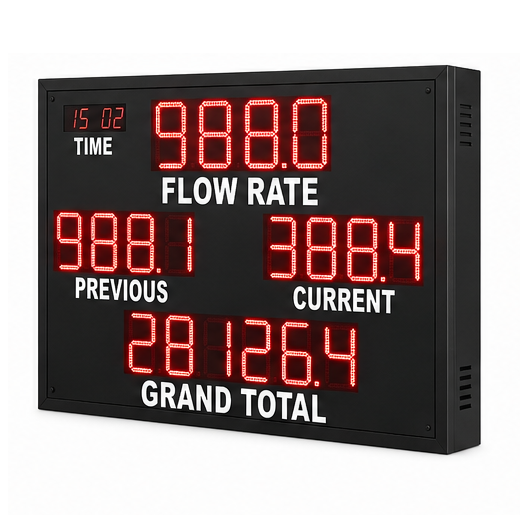

FW10C Flow Totalizer

Input: 4-20 mA
Flow Rate Display: 2 Inch
Current Hour Total: 4 Inch
Previous Hour Total: 4 Inch
External Season Total: 0.5 Inch
Time: 1 Inch

Custom Flow Totalizer

Tailor-Made Design
Supports 4-20mA, pulse, or other custom inputs.
Multiple size options
Monitors flow rate, totals, and more as needed.
Easily integrates with existing systems and sensors.

Flow Totalizer General Details

Description
Technical Specifications
Models

Features

Real-time flow rate and total volume display
Hourly current and previous hour totals with built-in clock (RTC)
Accepts 4–20 mA input from flow transmitters
Optional RS485 Modbus RTU or 4–20 mA retransmission output
24V DC power supply for field transmitter
Available in panel mount, compact wall, and jumbo wall enclosures
Industrial-grade MS construction with acrylic front for high visibility

Applications

Sugar mills (juice, imbibition, and process water flow)
Water treatment plants (ETP/STP)
Chemical dosing and batching processes
Cooling tower and boiler feed monitoring
Utility flow tracking and shift-wise reporting

Use Cases

Sugar Mills: Monitor water and juice flow rates
Oil and Gas: Monitor flow rates in pipelines for efficient resource management.
Water Treatment: Track water flow in treatment plants for accurate billing and consumption analysis.
Chemical Processing: Monitor liquid flow during production processes for quality control.
Food and Beverage: Ensure consistent flow rates for precise ingredient measurements.
Pharmaceuticals: Monitor flow rates during drug manufacturing processes for regulatory compliance.

For full detailed specifications, please download Datasheet from above link

Can be made to order as per user’s requirement.

Input Signal: 4-20 mA signal from Flow Transducer
Display Size: 4-inch, 6-inch, 8-inch
Measurement Range: Customizable range based on specific application
Accuracy: High accuracy measurement with minimal error
Power Supply: 220 VAC, 50 Hz
Enclosure Rating: IP65 (suitable for outdoor installations)
Enclosure Material: Powder Coated Mild Steel
Operating Temperature: -20°C to 60°C
Mounting Options: Wall-mount or panel-mount
Display Modes: Hourly, monthly, and seasonal flow totals with previous data
Alarms: Configurable high/low flow rate alarms
Compatible with SCADA systems for seamless data integration
Modbus RTU or Modbus TCP communication protocols

Model Code	Mounting Type	Hourly Reading	Output Option Codes	Special Features
FW10C-OP0	Wall-mounted	Yes (100 mm)	None (OP0)	Standard model
FW10C-OP1	Wall-mounted	Yes (100 mm)	RS485 Modbus RTU (OP1)	Modbus communication
FW10C-OP2	Wall-mounted	Yes (100 mm)	4–20 mA retransmission (OP2)	Analog output
FW10C-DS	Both-side wall mount	Yes (100 mm both sides)	Available on request	Visible from both directions
FW50T-OP0	Wall-mounted	Yes (12.5 mm)	None (OP0)	Compact integrated display
FW50T-OP1	Wall-mounted	Yes (12.5 mm)	RS485 Modbus RTU (OP1)	Modbus communication
FW50T-OP2	Wall-mounted	Yes (12.5 mm)	4–20 mA retransmission (OP2)	Analog output
FW30T-OP0	Panel-mounted	No	None (OP0)	DIN standard panel model
FW30T-OP1	Panel-mounted	No	RS485 Modbus RTU (OP1)	Modbus communication
FW30T-OP2	Panel-mounted	No	4–20 mA retransmission (OP2)	Analog output
