FW30T Flow Totalizer
FW30T Flow Totalizer

FW30T Flow Totalizer

Home > Instruments Instruments > Flow Rate Totalizer > FW30T
FW30T_2_min
FW30T_1_min
FW30T_4_min

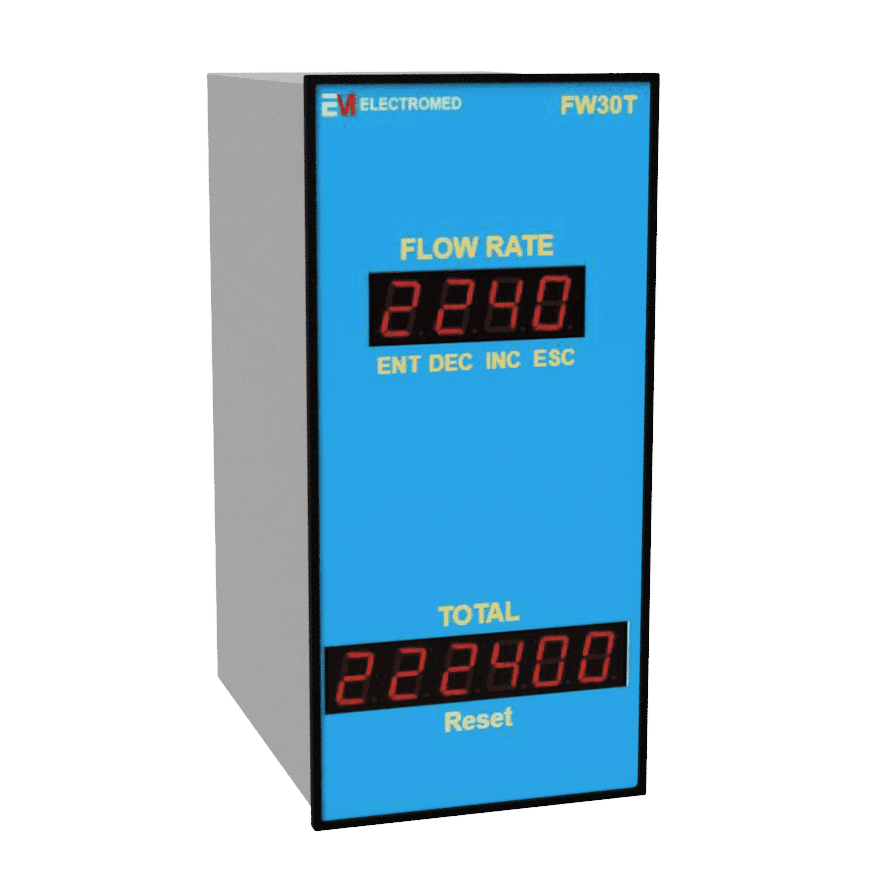

FW30T Flow Totalizer

The FW30T Flow Rate Totalizer offers clear, 0.5 inch displays for flow rate display and season total counter, ensuring accurate industrial flow monitoring.

Enquiry Now
Download Datasheet
Operations Manual
Key Features
  • Input: 4-20 mA
  • Flow Rate Display: 0.5 Inch
  • Season Total: 0.5 Inch

Specifications

For full detailed specifications, please download product datasheet.

ParameterSpecification
ModelFW30T
Input signal 4 to 20 milli Amps
Flow Rate Range 0 to 999.9 (Programmable)
Flow rate 4 digits, 12.5 mm (½ inch) high
Totalizer 6 digits, 12.5 mm (½ inch)
Dimensions 144mm wide * 288 mm high
Operating voltage 230 V AC; 50 Hz
MS powder coated enclosure
Make Electro-Med

Explore Flow Totalizer Models

Custom Flow Totalizer
  • Tailor-Made Design
  • Supports 4-20mA, pulse, or other custom inputs.
  • Multiple size options
  • Monitors flow rate, totals, and more as needed.
  • Easily integrates with existing systems and sensors.
See Details
FW10C Flow Totalizer
  • Input: 4-20 mA
  • Flow Rate Display: 2 Inch
  • Current Hour Total: 4 Inch
  • Previous Hour Total: 4 Inch
  • External Season Total: 0.5 Inch
  • Time: 1 Inch
See Details
FW50T Flow Totalizer
  • Input: 4-20 mA
  • Flow Rate Display: 2 Inch
  • Current Hour Total: 4 Inch
  • Previous Hour Total: 4 Inch
  • External Season Total: 0.5 Inch
  • Time: 1 Inch
See Details
